產品：KH01
產品特性:
■特點：
☆短圓柱連接形式。
☆結構緊湊、操作方便、定心精度高、夾持范圍廣。
☆用于管類工件的焊接與切割。
☆主要與焊接機床配套。
■Specificity:
☆Short cylindrical center mounting.
☆With compact structure, used easily , high centring precision and large clamping range.
☆Suitable for welding and cutting pipe workpieces.
☆Equiped with the welding machine tools mainly.
產品詳情

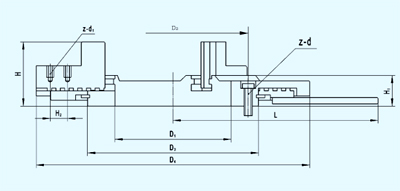

■尺寸、性能參數 Dimension、Characteristic Parameters
|
規(guī)格
Size
|
D1
|
D2
|
D3
|
D4
|
H
|
H1
|
H2
|
L
|
z-d1
|
z-d
|
|
200
|
80
|
100
|
120
|
200
|
67.5
|
39
|
21
|
200
|
6-M6
|
3-M8
|
|
300
|
100
|
120
|
150
|
300
|
67.5
|
39
|
21
|
240
|
6-M6
|
3-M8
|
|
400
|
170
|
220
|
250
|
400
|
95
|
45
|
25
|
300
|
6-M6
|
3-M10
|
|
