產品：K61
產品特性:
■特點：
☆短圓柱連接形式。
☆卡爪既可單獨調整,又可聯動自定心夾緊。
☆適用于各種形狀零件的加工。
■Specificity:
☆Short cylindrical center mounting.
☆The jaws can be adjusted indepdently and also jointly for self-centring.
☆Suitable for machining various shaped components.
產品詳情

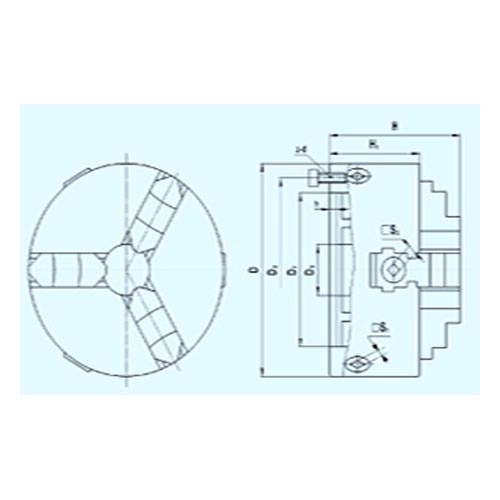

■尺寸、性能參數 Dimension、Characteristic Parameters
|
規格D
Size
|
D1
|
D2
|
D3
|
H1
|
H
|
h
|
S1
|
S2
|
z-d
|
凈重Kg
Net.WT
|
|
160
|
130
|
142
|
42
|
87
|
115
|
5
|
10
|
8
|
3-M8
|
11
|
|
200
|
165
|
180
|
65
|
97
|
127
|
5
|
12
|
10
|
3-M10
|
18
|
|
250
|
206
|
226
|
80
|
102
|
142
|
5
|
12
|
10
|
3-M12
|
29
|
|
325
|
272
|
296
|
100
|
120
|
163
|
6
|
13
|
12
|
3-M16
|
46
|
|
500
|
440
|
465
|
210
|
147
|
202.3
|
6
|
17
|
14
|
6-M16
|
-
|
產品備注
K61A、K62A型配帶符合ISO3442標準的分離爪。
Model K61A、K62A chucks are supplied with two-piece jaws as per ISO3442.
|
