產品：TK52，TK55
產品特性:
■特點：
☆短圓柱連接形式。
☆具有通孔，適合棒料加工。
☆性能可靠，經濟實用。
■Specificity:
☆Short cylinders center mounting.
☆With thru-hole and suitable for processing rod components.
☆The chucks are economic practical and with high performance reliability.
產品詳情

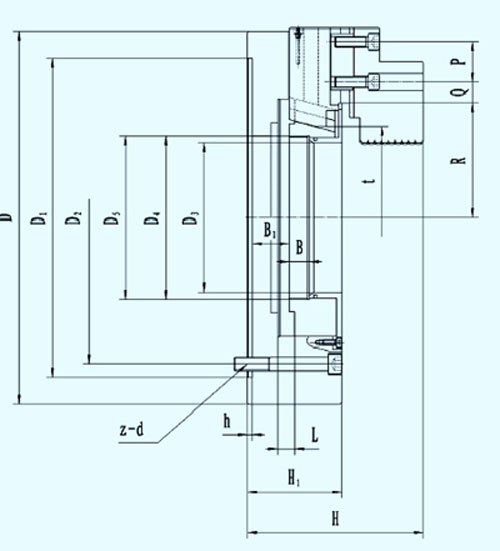

■尺寸參數 Dimension Parameters
|
規格D
Size
|
D1
|
D2
|
D3
|
D4
|
D5
|
H1
|
H
|
h
|
P
|
Qmax
|
Qmin
|
Rmax
|
Rmin
|
B
|
B1max
|
B1min
|
z-d
|
|
550
|
470
|
430
|
220
|
M240×3
|
240
|
140
|
260
|
7
|
60
|
38
|
15
|
169
|
162.5
|
30
|
55
|
30
|
6-M20
|
■性能參數 Characteristic Parameters
|
規格D
Size
|
楔心套行程Lmax
Axial wedge stroke
|
爪行程（直徑）
Jaw stroke(Dia.)
|
許用推拉力kN
Max. draw pull
|
最大夾緊力kN
Max. gripping force
|
極限轉速r/min
Max. speed
|
夾緊范圍
Clpmping range
|
撐緊范圍
Jamming range
|
推薦氣缸P21
Rec.cylinder
|
推薦油缸P23
Rec.cylinder
|
凈重Kg
Net WT
|
|
550
|
25
|
13
|
110
|
245
|
700
|
60-220
|
-
|
-
|
300
|
-
|
產品備注
注：表中（）數值適用于軟卡爪卡盤，[]數值適用于十字鍵卡爪卡盤。
Note:The() on the above table is for soft jaw chucks ,the [] is for cross tenon jaw chucks.
|
