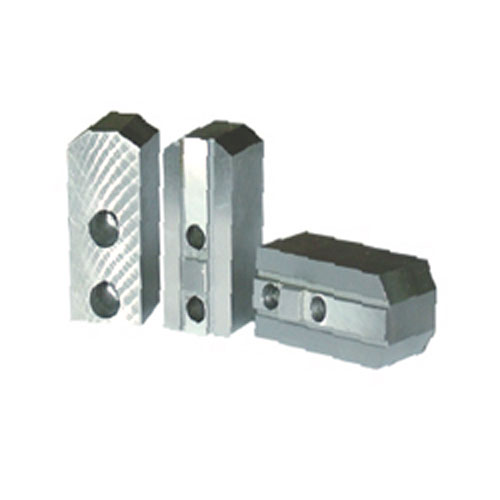

產品：K51T，K51，K51F
產品特性:
■特點：
☆夾持弧面按工件要求可隨機配車或配磨。
☆連接剛性強，夾持精度高。
☆夾持直徑的調整主要靠更換卡爪實現，尤其適用于加工大批量零件。
■Specificity:
☆The clamping arc can be turned or ground as the request of the workpieces.
☆With nice connection rigidity and high clamping accuracy.
☆Achieving the adjustment of the clamping diameter by jaw-change, especially suitable for machining large-batch components.
產品詳情

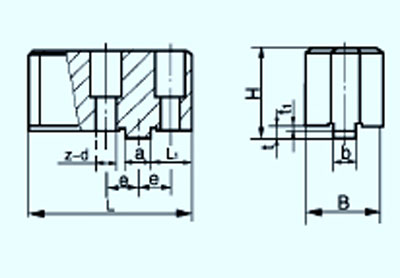

■K51TB、K51B、K51FB
|
規格D
Size
|
L
|
L1
|
B
|
H
|
a
|
b
|
e
|
t
|
t1
|
z-d
|
凈重Kg
Net WT.
|
|
160
|
70
|
18
|
35
|
42
|
11
|
11
|
14
|
5
|
1.5
|
2-9
|
11
|
|
200
|
86
|
20
|
40
|
50
|
13
|
13
|
16
|
6
|
2
|
2-11
|
20
|
|
250
|
105
|
25
|
45
|
58
|
15
|
15
|
20
|
7
|
2.5
|
2-13
|
31
|
|
320
|
130
|
28
|
50
|
69
|
18
|
18
|
22.5
|
8
|
3
|
2-15
|
53
|
|
400
|
160
|
40
|
50
|
80
|
20
|
20
|
30
|
9
|
3.5
|
2-17
|
83
|
|
500
|
190
|
56
|
55
|
85
|
22
|
22
|
39
|
9
|
3.5
|
2-19
|
134
|
|
630
|
235
|
76
|
60
|
100
|
24
|
24
|
50
|
10
|
4
|
2-22
|
—
|

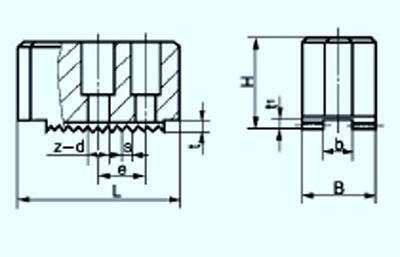

■K51TC、K51C、K51FC
■特點：
☆夾持弧面按工件要求可隨機配車或配磨。
☆調整梳齒可改變夾持直徑。
☆夾持精度高。
■Specificity:
☆The clamping arc can be turned or ground as the request of the workpieces.
☆Changing the clamping diameter by adjusting the serrations.
☆With high clamping accuracy.
|
規格
Size
|
L
|
B
|
B
|
H
|
e
|
s
|
t
|
t1
|
z-d
|
|
160
|
70
|
35
|
13
|
42
|
20
|
1.5×90°
|
4.5
|
4
|
2-11
|
|
200
|
82
|
40
|
16
|
46
|
24
|
1.5×90°
|
4.5
|
4
|
2-13
|
|
250
|
95
|
45
|
17
|
50
|
28
|
1.5×90°
|
4.5
|
4
|
2-13
|
|
320
|
118
|
50
|
21
|
62
|
32
|
2.5×90°
|
4.5
|
4
|
2-17
|
|
400
|
140
|
50
|
20
|
75
|
45
|
2.5×90°
|
6
|
5.5
|
2-17
|
|
500
|
160
|
55
|
22
|
85
|
50
|
2.5×90°
|
6
|
5.5
|
2-17
|
|
630
|
190
|
60
|
26
|
100
|
55
|
2.5×90°
|
6
|
5.5
|
2-22
|
|
